Intelligent Arm Loading System -Full-Automatic Loading & Unattended anti-cheating weighing-BOLE

One-Button Full-Automatic Intelligent Arm Loading

Safeguard Safety in an All-round Way and Reduce the Burden of Drivers: Intelligent sensing technology and security control strategy to reduce the manual intervention; Personnel intrusion detection and anti-overflow detection to ensure the operation safety; 7x24h full-automatic loading, accurate positioning in the whole process less than 60s

Precisely Controlled Filling Applicable For Multiple Scenarios: Visual Identification + Radar Positioning Technology, Positioning Accurately ±20mm; Real-time comparison of business order data to avoid over- or under-filling; A variety of arm types are available to meet a wide variety of application scenarios

Business Implementation

01 Multiple Identity Verification

Multi-identity verification to meet the customer's personalized requirements and different site conditions
02 Automatic Positioning

Adopt the technology of"Visual Identification + Laser Positioning" to automatically insert the arm to into the tank mouth

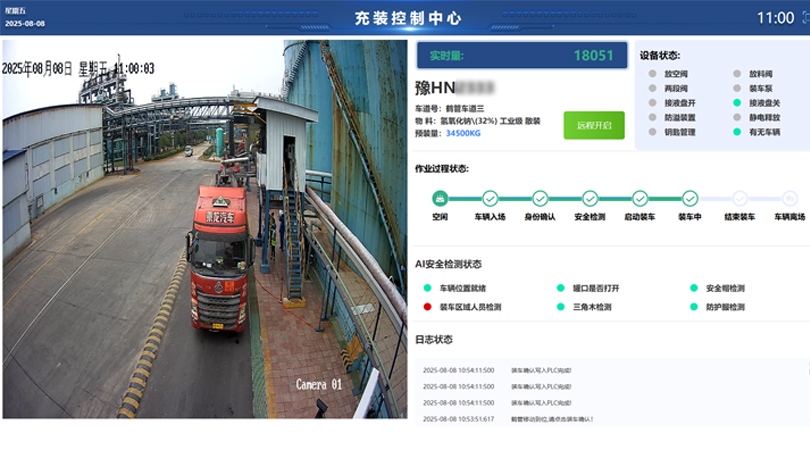

03 -One Key Operation

Remotely one-key operation to make the arm automatically complete the liquid filling without redundant operation
04 Quantitative + Anti-overflow

Real-time monitoring on the anti-overflow status and flow meter to ensure the accurate and quantitative filling and prevent overflow
05 Residue Recovery

When the arm filling ends, the system automatically judges and guides the liquid receiving machine to recover the residual liquid
06 Safety Testing

Detection on personnel intrusion, key box, tank mouth, safety helmet, protective equipment, etc.

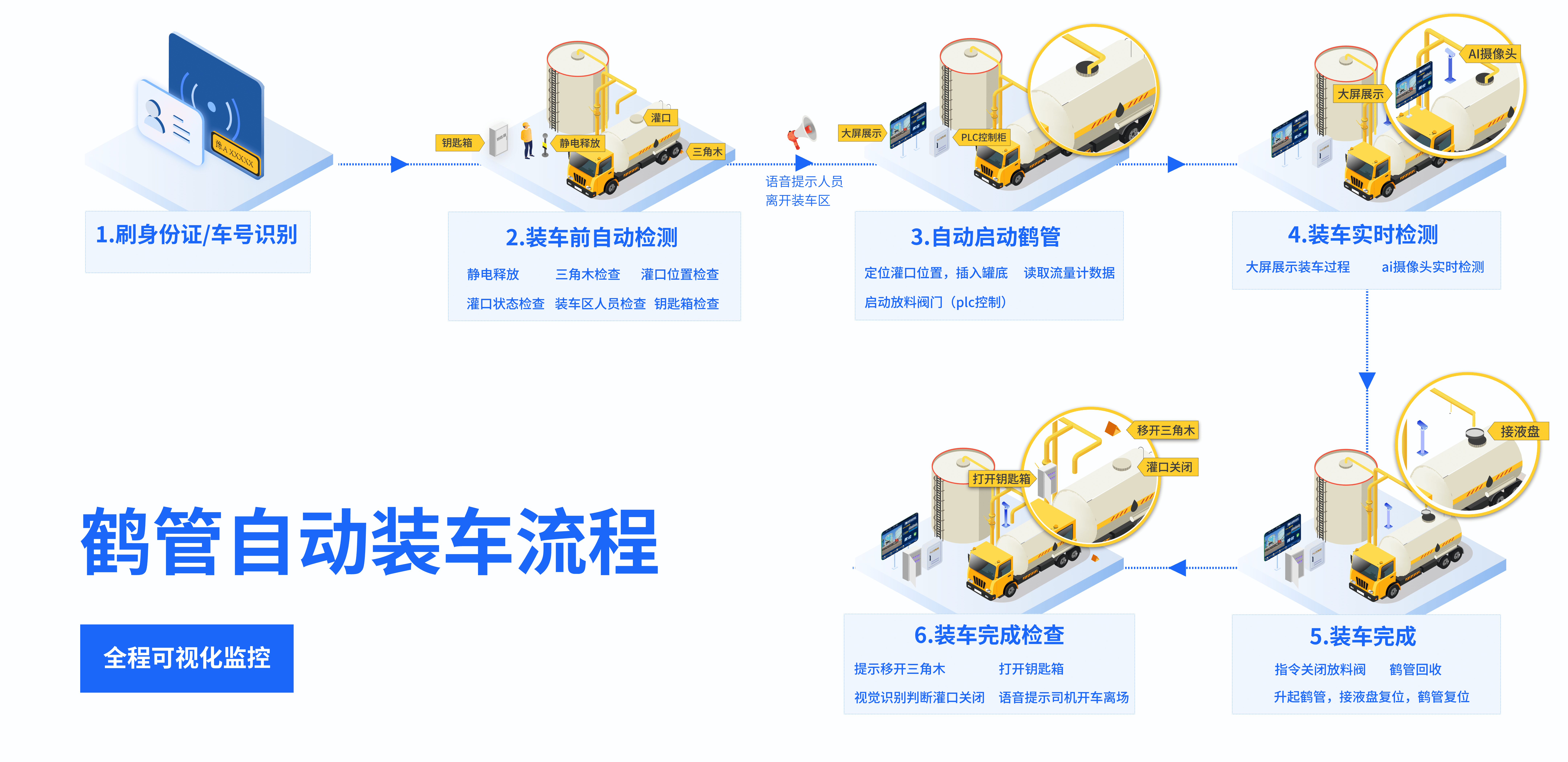

Business Process

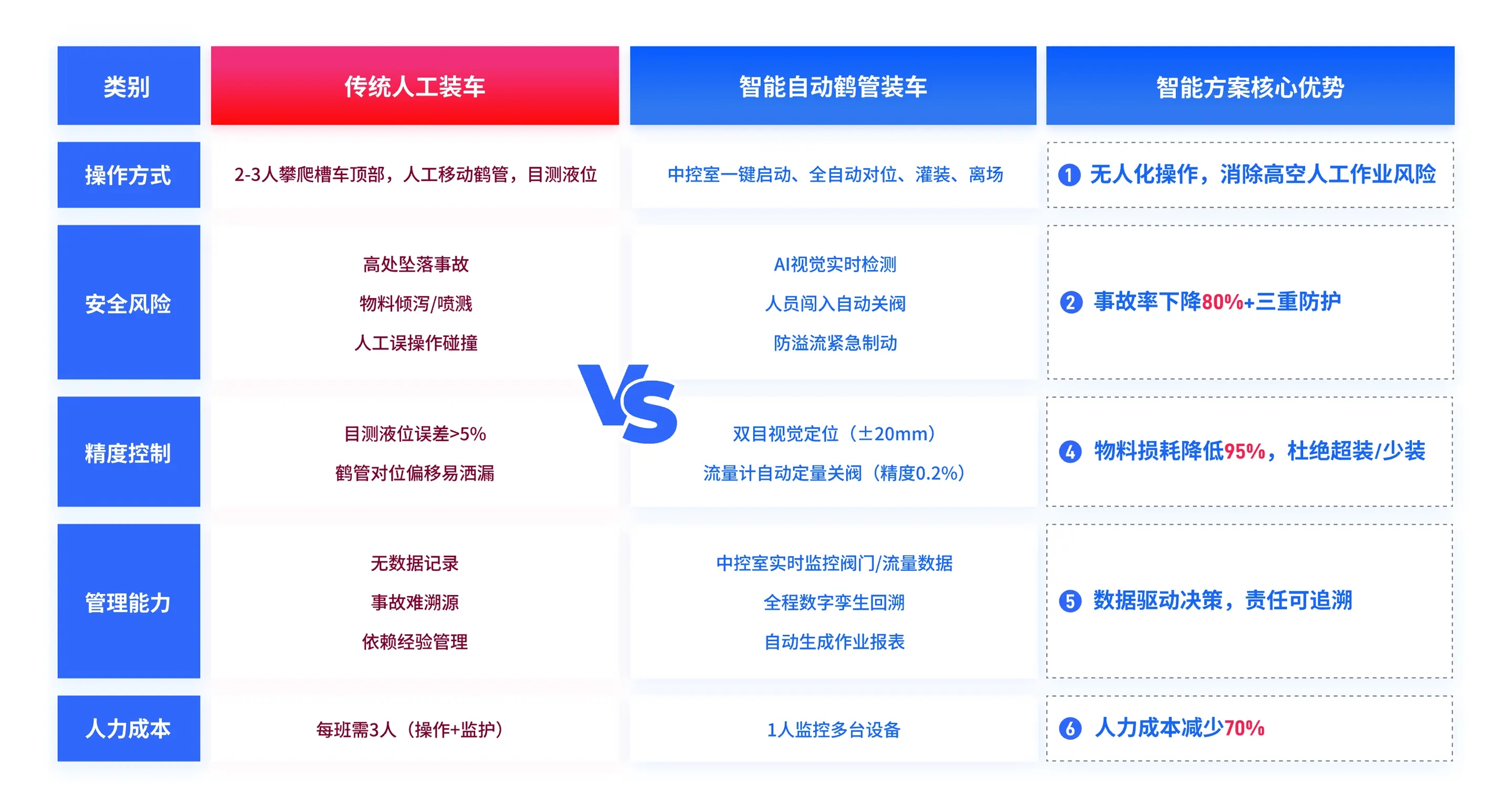

Effect Comparison

Cases

Haohua Yuhang Chemicals

In order to solve the manual operation pain points in the caustic soda filling process, Haohua Yuhang Chemicals launched the intelligent upgrading and transformation of loading arm to create a whole-process intelligent filling system and set up a new standard of safe and efficient filling in the chemical industry...

Learn More
